Product Dimensions 9.5"h x 20.5"w x 11.19"d

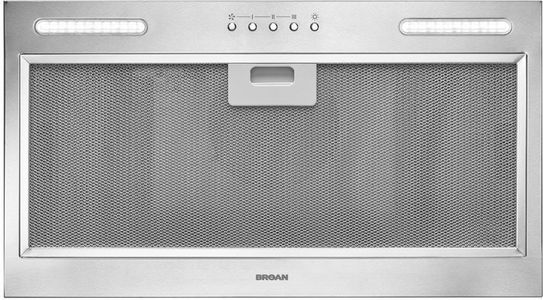

High-performance ventilation solutions. These integrated units provide the ventilation and lighting you need for your custom application. Broan “T” and “B” liners provide an elegant way to finish a traditional wood hood and protect cabinetry. Smooth surfaces clean easily and quick-release filters can go in the dishwasher.Read More
$359.99
Save $36.00
Please contact our store for more details and availability timelines.
View Options
5 Year Parts & Labor Warranty
$149.99
View Options
CALL OR CHAT FOR AVAILABILITYMORE SAVINGS IN STORE!
This three-speed power pack delivers up to 390 CFM. The quick-release filter is dishwasher safe, and smooth surfaces clean easily. Achieve a custom look and protect cabinetry with stainless steel liners.
Same features as PM390 with Stainless Steel finish, LED lighting system and Pushbutton controls
Optional non-ducted filter kit model 360NDK for indoor exhaust recirculation (includes duct accessories & charcoal filter), sold separately. Replacement charcoal filter is B08999040.
Optional 30" (model LB30SS) or 36” (model LB36SS) Box Liners in Stainless Steel
390 CFM, 6.0 sones, HVI Certified
Three-speed, push-button control includes a dedicated on/off
Bright LED strip-lighting modules illuminate evenly and are tested in cooking environments to ensure long life without dimming
Heat Sentry™ detects excessive heat and adjusts blower speed to high automatically.
6" round duct adapter with damper
Easy-to-clean, fully enclosed bottom with dishwasher-safe, aluminum-mesh filter
Works with optional Universal Make-up Air Dampers
Works with optional stainless LB liners and painted LT liners
General Specs | |
| Width (in.) | 20.5 |
| Height (in.) | 9.5 |
| Duct Size (in.) | 5.88 |
| Depth (in.) | 11.19 |
| Color | Stainless Steel |
| Manufacturer Warranty | 1 Year / 3 Year LED Modules |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 21 |
| Maximum CFM | 390 |
| Voltage | 120 |
| Amp | 2.3 |
| Frequency | 60 |
Overview | |
| Sones | 6 |
| Light Number Of Levels | 1 |
| Light Bulb Wattage | 20W |
| Light Bulb Recommended Type | LED Module |
| Light Bulbs Included | Yes |
| Light Bulb Quantity | 2 LED Modules |
| Filter Quantity | 1 |
| Heat Sentry® – Temperature Sensor | Yes |
| Filter Type | Aluminum |
| Motor Number Of Speeds | 3 |
| Non-Ducted Recirculation Capable | Yes |
| Duct Connector Size | 6" Round |
| Duct Direction | Vertical |
| Duct Shape | Round |
